Low-Profile Vibration Isolation Platform

High performance low-profile vibration isolation platform suitable for large equipment with high weight and

Providing optimized total solution considering equipment specifications such as shape and weight etc. of large equipment

- The vibration isolation top plate with characteristics of high strength and vibration damping customized to the weight and size of the equipment
- Omnidirectional vibration isolation ability optimized according to equipment weight and leveling by possessing various isolator technologies
- An isolator equipped with a self-developed special air spring, which has excellent vibration suppression ability even on weak ground

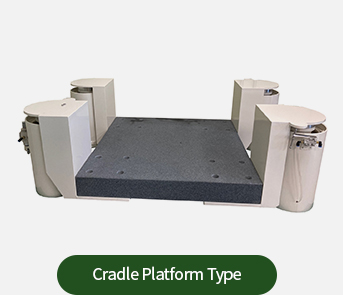

Cradle Platform: High performance low-profile vibration isolation platform suitable for cases where the center of gravity is at the top

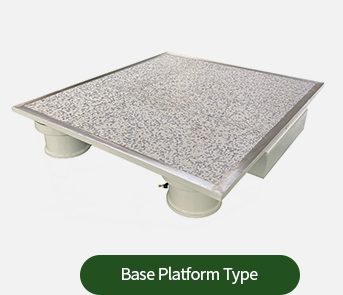

Base platform: High performance low-profile vibration isolation platform suitable for high weight equipment

Model	RSLC Series	RSLB Series
Natural Frequency	General type: 1.0~1.2Hz (Vertical)/ 1.5~1.8Hz (Horizontal) Special type: 0.7~1.0Hz(Vertical)/ 1.0~1.2Hz (Horizontal)
Leveling type	Auto Leveling System by 3-Point Leveling Valve Repeatability : ±0.1mm
Vibration Isolation	Pneumatic Isolation Type
Top plate material	Conductive tile top plate of surface plate, honeycomb and layered structure / Frame: Steel, AI, Stainless
Load weight (kg)	0 ~ 10,000Kg
Operation	Compressed air or nitrogen gas
